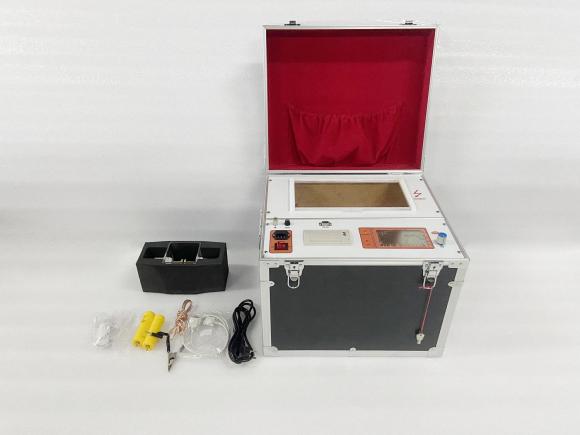

- Insulation Oil Dielectric Strength Tester BLS-80V
- 【Brief】：The insulating Oil Dielectric Strength Tester BLS-80V is developed according to the national standard GB-86 "Insulation oil dielectric strength measurement method"
- 【Series】：Insulating Oil Transformer Oil Testers
Application
The insulating Oil Dielectric Strength Tester BLS-80V is developed according to the national standard GB-86 "Insulation oil dielectric strength measurement method". The test process
and result is displayed in the LCD screen. The built-in EEPROM memory can save up to 100 sets of test data and results. The micro-printer can print the test results at any time. The tester is easy to operate, powerful, stable and reliable, and it has excellent anti-interference ability. No crash occurred during the test.
Features
1. High stability and long service life
2. The test process is fully compliant with the requirements of IEC60156 and GB/T 507 standards.
3. All aspects of the test process can be set, and the test accuracy is high.
4. PC application software is provided to upload test data to make WORD test report.
Technical Parameters
|
Power supply input |
AC220V input |
|
Output voltage |
AC 0V~80KV (80KV) |
|
AC 0V~ 100KV ( 100KV) |
|
|
Rate of voltage rise |
2kv/s±10% |
|
Max test times |
9 |
|
Stir time |
0~999s |
|
Wait time |
0~999s |
|
Test error |
3% max in the range of 10kv~80kv (80KV) |
|
3% max in the range of 10kv~ 100kv ( 100KV） |
|
|
Storage |
100 groups |
|
Weight |
40kg |
|
Size |
460mm*420mm*440mm |
